Hydraulic Compactors

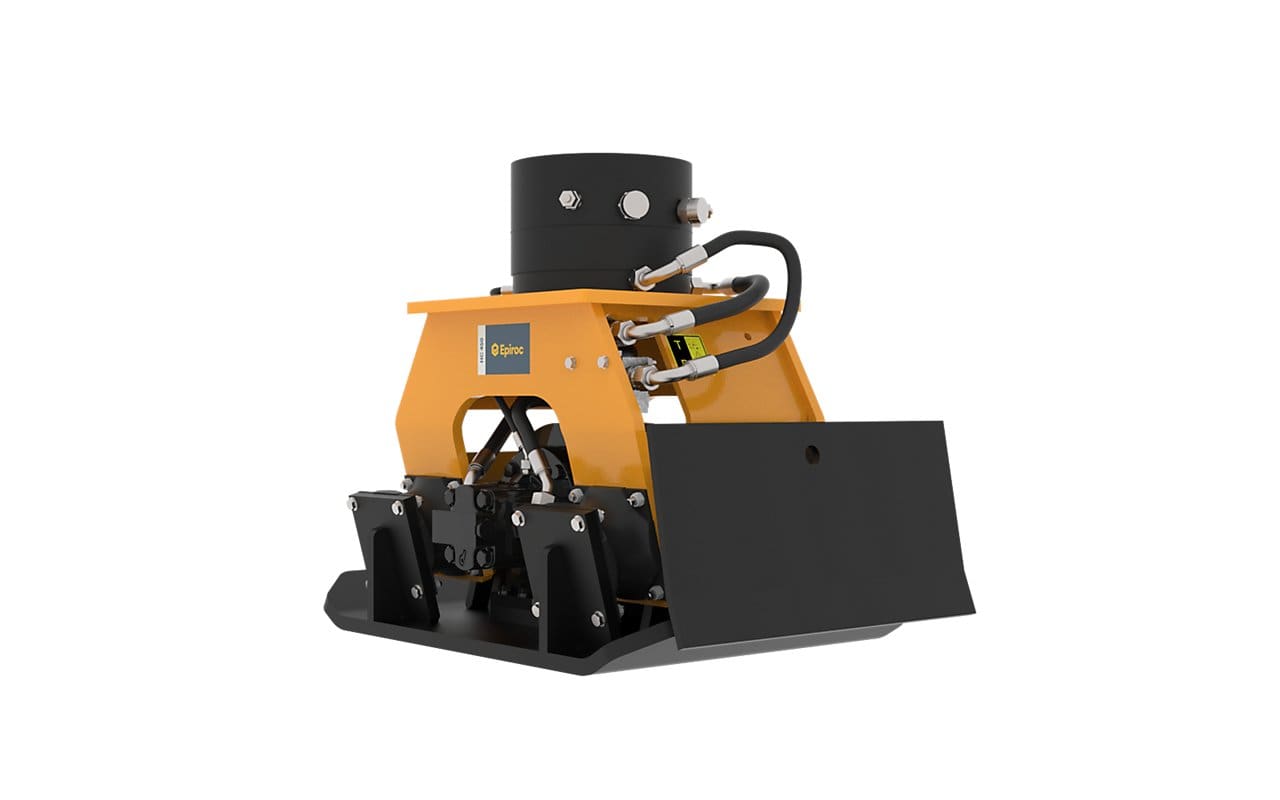

Epiroc Hydraulic Compactor
Hydraulic Compactors
Epiroc Hydraulic Compactor
Key Specs
-
Carrier
1 to 40 ton
Product Overview
Excavator compactors for carriers of 1-40 tons (2,205-88,184 lb)
- New valve block with a better performance
- New hydraulic motor (new seal) for higher back pressure
- New fittings and internal hoses
Hydraulic compactors on solid ground
The hydraulic plate compactors are designed for effectively compacting soil in trenching, ground levelling, embankment construction, driving in and pulling out posts, sheet piling and other formworks.
A quiet, safe and efficient alternative
Hydraulic plate compactors are designed for compacting soil, trenches and embankments as well as driving in and pulling out posts and formwork.
Why hydraulic plates compactors as excavator attachments?
Machine-driven soil compactors work quickly and economically and are easy to operate. Hydraulic compactors can be fitted to standard adapter plates and quick-coupling systems.
Quiet and safe
A compactor attachment creates little noise and offers increased safety particularly when used in trenches, as there is no longer any need for someone to stand directly in the workspace
Easy positioning
Optional continuous rotation device makes positioning easy. Productivity can be enhanced, even in terrain which is hard to be accessed.
Product Specification for Epiroc Hydraulic Compactor
| Model | Carrier Weight Class | Height | Width | Vibrating Force |
|---|---|---|---|---|
| HC 150 | 1 t - 3 t | 486 mm | 295 mm | 1,4 t |
| HC 350 | 3 t - 8 t | 623 mm | 475 mm | 2,3 t |
| HC 350 R | 4 t - 8 t | 913 mm | 475 mm | 2,3 t |
| HC 450 | 4 t - 9 t | 622 mm | 610 mm | 3,6 t |
| HC 450 R | 5 t - 9 t | 622 mm | 610 mm | 3,6 t |
| HC 850 | 9 t - 20 t | 764 mm | 28 mm | 7,3 t |
| HC 850 R | 9 t - 20 t | 1054 mm | 710 mm | 7,3 t |
| HC 1050 | 20 t - 40 t | 786 mm | 864 mm | 10,5 t |
| HC 1050 R | 20 t - 40 t | 1088 mm | 864 mm | 0,9 t |
| Model | HC 150 |
| Carrier Weight Class | 1 t - 3 t |
| Height | 486 mm |
| Width | 295 mm |
| Vibrating Force | 1,4 t |
| Model | HC 350 |
| Carrier Weight Class | 3 t - 8 t |
| Height | 623 mm |
| Width | 475 mm |
| Vibrating Force | 2,3 t |
| Model | HC 350 R |
| Carrier Weight Class | 4 t - 8 t |
| Height | 913 mm |
| Width | 475 mm |
| Vibrating Force | 2,3 t |
| Model | HC 450 |
| Carrier Weight Class | 4 t - 9 t |
| Height | 622 mm |
| Width | 610 mm |
| Vibrating Force | 3,6 t |
| Model | HC 450 R |
| Carrier Weight Class | 5 t - 9 t |
| Height | 622 mm |
| Width | 610 mm |
| Vibrating Force | 3,6 t |
| Model | HC 850 |
| Carrier Weight Class | 9 t - 20 t |
| Height | 764 mm |
| Width | 28 mm |
| Vibrating Force | 7,3 t |
| Model | HC 850 R |
| Carrier Weight Class | 9 t - 20 t |
| Height | 1054 mm |
| Width | 710 mm |
| Vibrating Force | 7,3 t |
| Model | HC 1050 |
| Carrier Weight Class | 20 t - 40 t |
| Height | 786 mm |
| Width | 864 mm |
| Vibrating Force | 10,5 t |
| Model | HC 1050 R |
| Carrier Weight Class | 20 t - 40 t |
| Height | 1088 mm |
| Width | 864 mm |
| Vibrating Force | 0,9 t |
