Product Overview

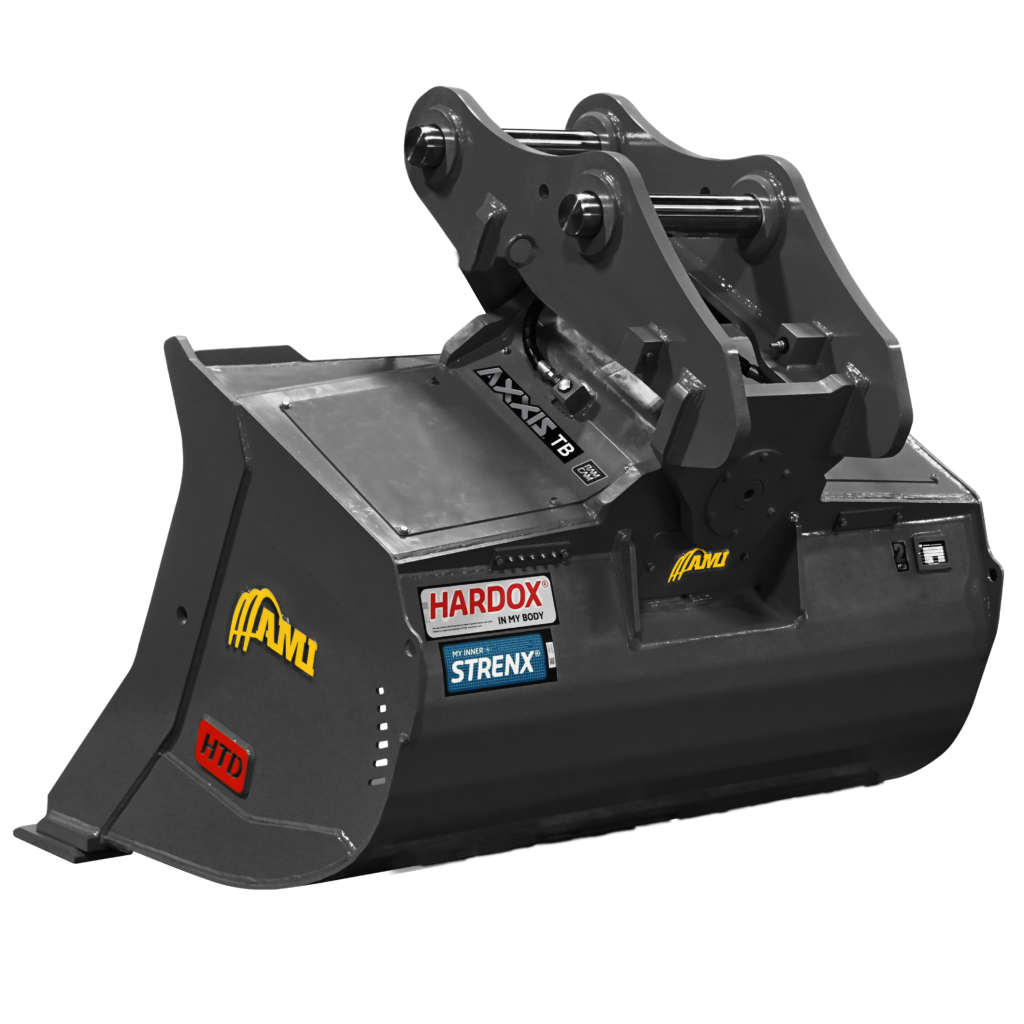

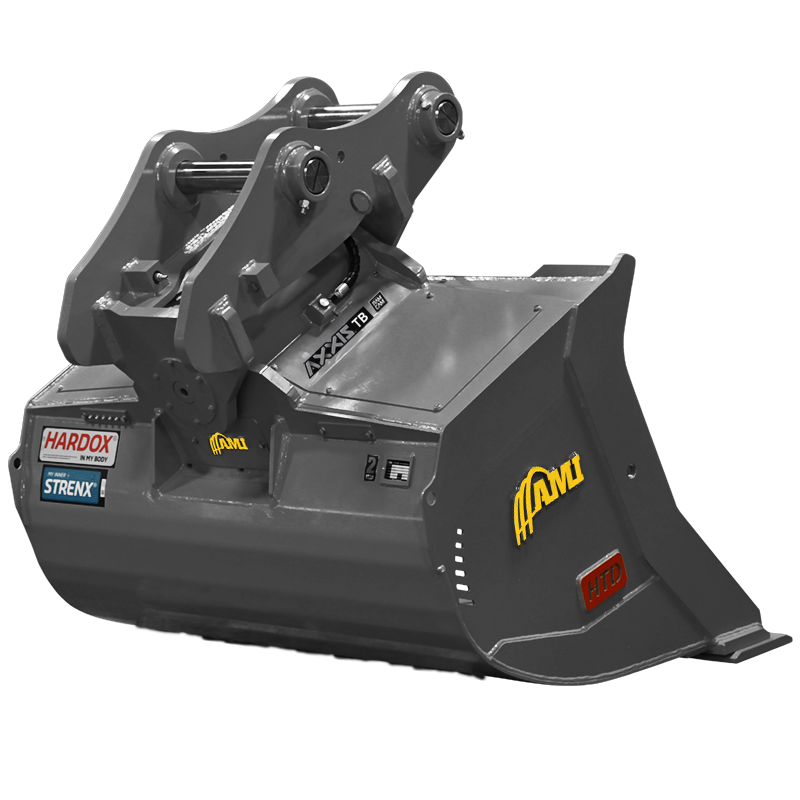

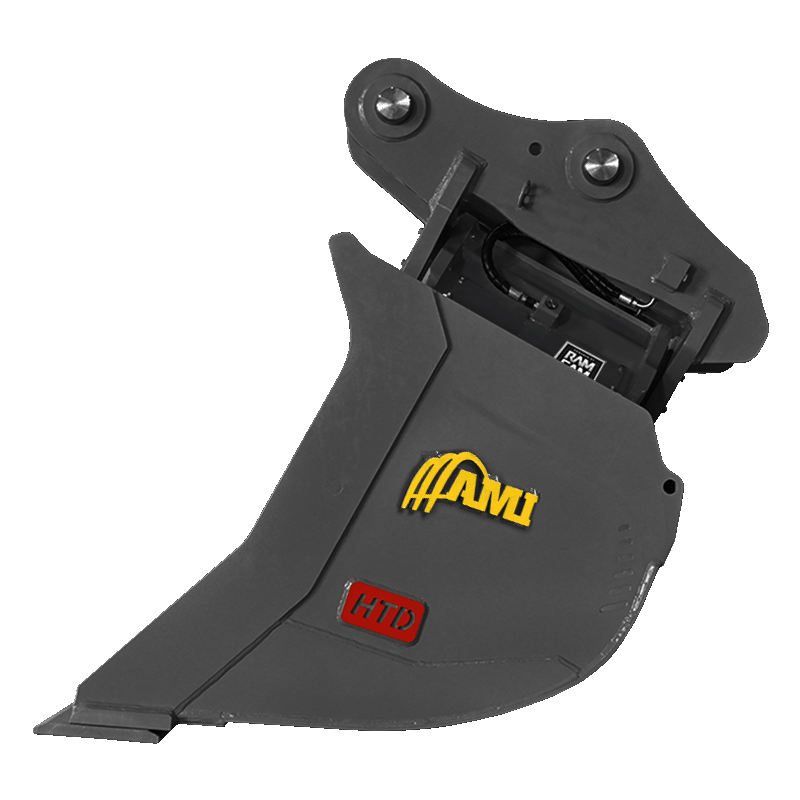

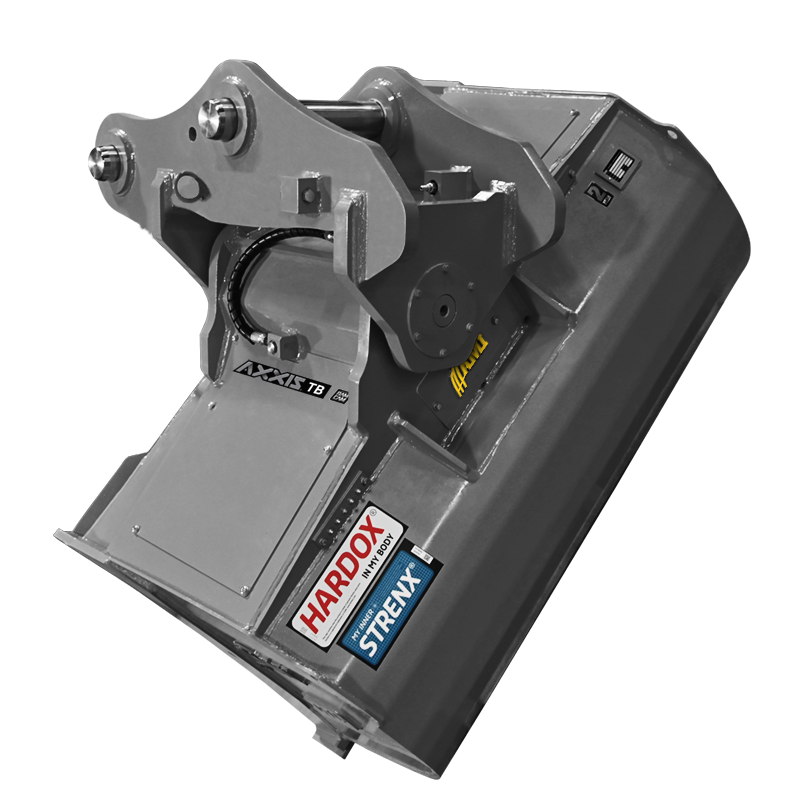

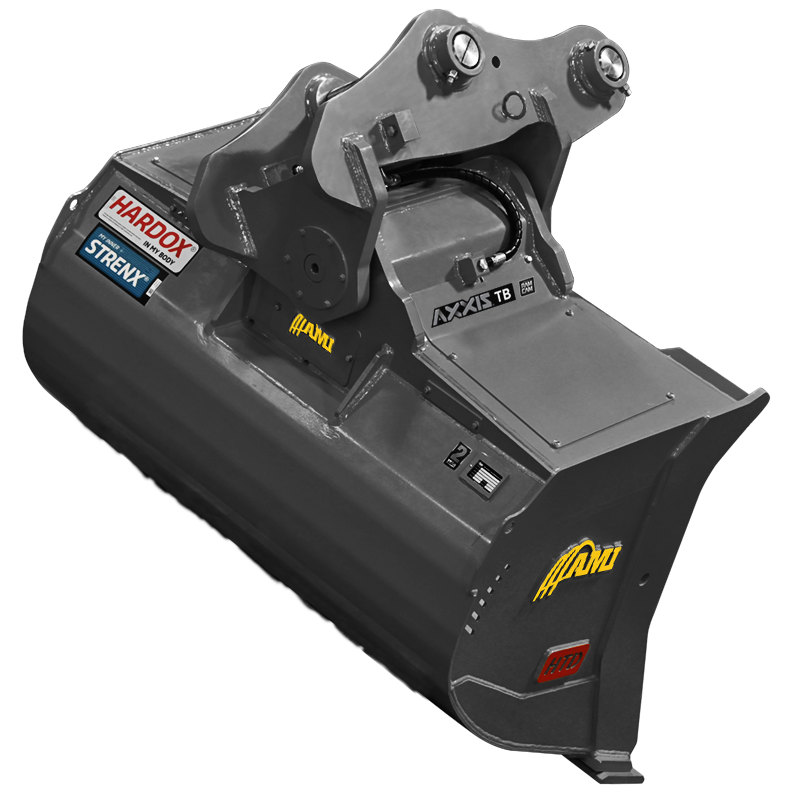

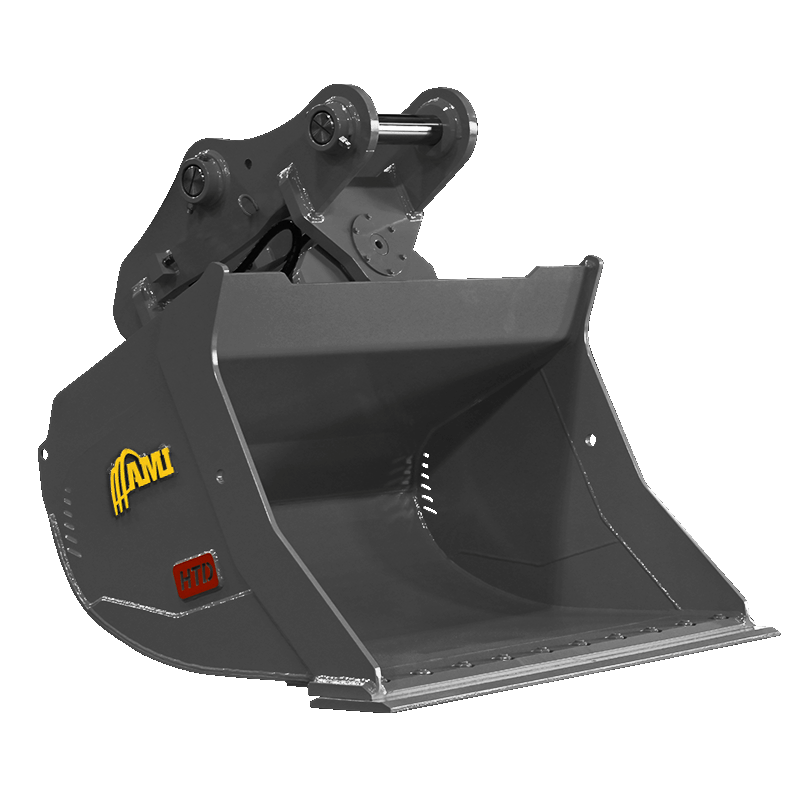

AMI Attachment’s AXXIS® TB Powered by RAMCAM™ – the ultimate heavy-duty attachment designed to conquer any task with ease. This rugged and powerful tilt bucket is built to last, providing reliability in demanding conditions. Equipped with AXXIS® and RAMCAM™ technology, the hydraulic cylinders are fully protected with minimal hose exposure, reducing damage and downtime. No more broken cylinders from rock obstruction, interference from material build-up, or frozen dirt on bucket’s mechanical components. The AXXIS® TB Powered by RAMCAM™ is the first Tilt Bucket that’s got every angle covered. Patent Pending.

Features

RAMCAM™
RAMCAM™ is a revolutionary new drivetrain that allows for mechanical rotation using hydraulic cylinders within a protective casing. Patent Pending.

SPLINED PIN
More than just a pivot point, RAMCAM™ features a splined pin that stays securely in place. As the hydraulic cylinders push against the lobes, the torque is transferred to the splines providing rigidity and strength.

GREASE BANK
With all the grease points now protected, the Tilt Bucket powered by RAMCAM™ features a grease bank for simple and routine maintenance.

90° ROTATION
With 90-degree tilt, the RAMCAM™ drivetrain delivers the same tilt range as AMI Attachments’ conventional tilt bucket.

TAPERED SIDEWALLS
Along with a replaceable bolt-on cutting edge, the bucket includes tapered sidewalls, reducing friction between material and bucket when unloading.

DUAL RADIUS HEEL
The heel profile incorporated a dual radius contour, minimizing surface contact while curling.
